EQUIPMENT
Medicine Preparation Equipment
Medicine Preparation Tank
- Tank volume can be customized
- Both Platform type, Leg type are available
- Water heating type (Steam type is option)
- Mixing, Homogenizing, Vacuum, Temperature control
- Homogenizing & Mixing & Vacuum at the same time

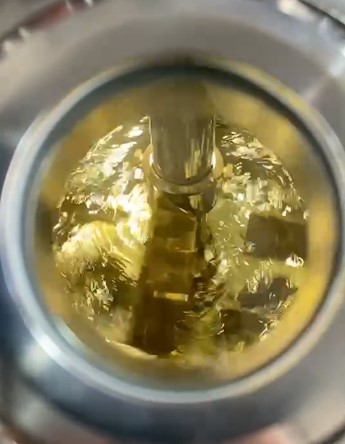

- Temp guage, vacuum guage,safty valve, Sight glass installed
- Easy to clean
| 400L | 600L | 800L | |
| Dimension(mm) | 1,000(Dia)x2,300(L) | 1,100(Dia)x2,400(L) | 1,200(Dia)x2,450(L) |
| Rotate speed | 52RPM | 52RPM | 45RPM |
| Agitator speed | 2800RPM | ||
| Temperater Control | <100℃ | ||
| Heating Elements | Jacketed electric heating system | ||
| Electricity | 380V,50/60Hz | ||
| Power Consumption | 14.5KW | 21KW | 25KW |
| Pressure | -0.09~0.09Mpa | ||
| Material | Contact parts in SUS 304 or 316L or equibalent material | ||
| Jarket Layer | 3Layer | ||
